Model：F4D2-Z7
category：Peristaltic pump filling system

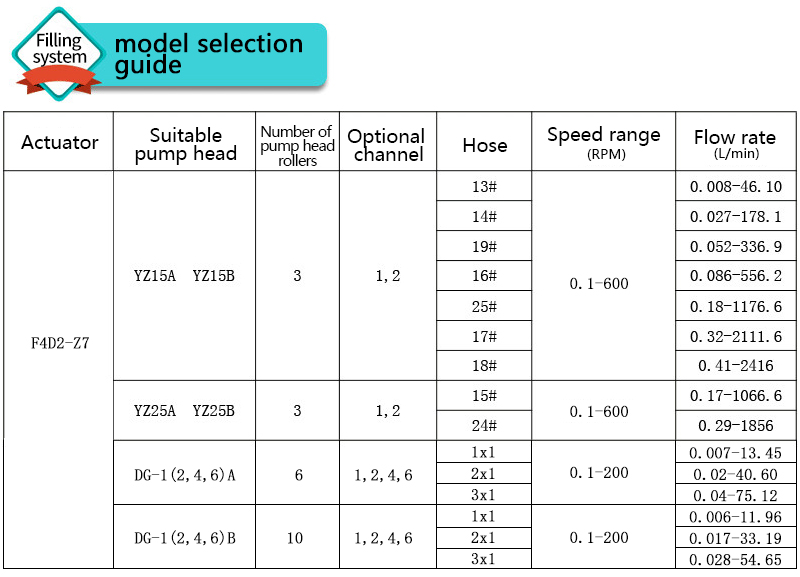

Reference flow rate：0.008-2416mL/min
category：Peristaltic pump filling system
Reference flow rate：0.008-2416mL/min
Characteristic：
Maximum flow reference: 0.007-2416mL/min
Reference flow of DG pump head: 0.007-54.65mL/min

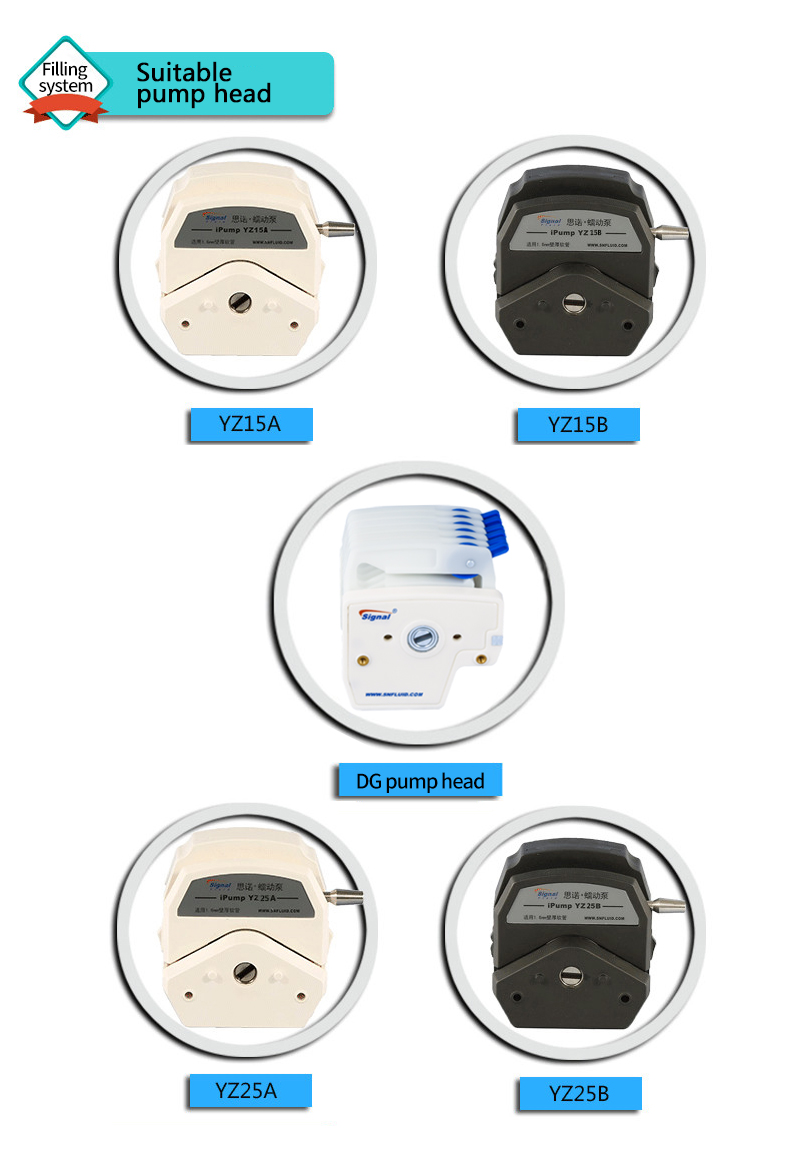

The number of channels in the filling system can be customized and can be expanded to 32 channels; YZ15 and YZ25 pump heads can be installed;
The shell is made of stainless steel and corrosion resistant. Each channel is equipped with buttons and digital display, which supports online fine adjustment and facilitates customers to adjust the liquid volume online.Each channel has an independent bottle shortage and filling stop function.
Imported motor drive chip is adopted, with superior performance. All circuit boards are treated with three-proofing paint to prevent corrosion and moisture
The controller adopts a 7-inch (optional 8-inch) industrial touch screen with clear display, convenient operation and selectable language (switch between Chinese and English);
The first page of the interface: display liquid volume, time, pump head, hose and other filling parameters; Indication of equipment working status; Accumulation and clearing of filling times;
Start and stop control of each channel and quick filling and suction function;
Industry application：
Pharmaceutical equipmentDrug detection equipment
Biochemical analysis instrument
drying equipment
Food/Beverage Chemicals
Water treatment industry
1. The filling system is composed of 4 channels. The number of channels can be customized and can be extended to 32 channels; YZ15, YZ25 pump head and DG pump head can be installed;
2. The shell is made of stainless steel and corrosion resistant. Each channel is equipped with buttons and digital display, which supports online fine adjustment and facilitates customers to adjust the liquid volume online.
Each channel has independent bottle shortage and filling stopping function
3. The controller adopts a 7-inch (optional 8-inch) industrial touch screen with clear display, convenient operation and selectable language (switch between Chinese and English)
4. The first page of the interface: display liquid volume, time, pump head, hose and other filling parameters; Indication of equipment working status; Accumulation and clearing of filling times;
Start and stop control of each channel and quick filling and suction function
5. Imported motor drive chip is adopted, with superior performance
6. All circuit boards shall be treated with three-proofing paint to prevent corrosion and moisture.
